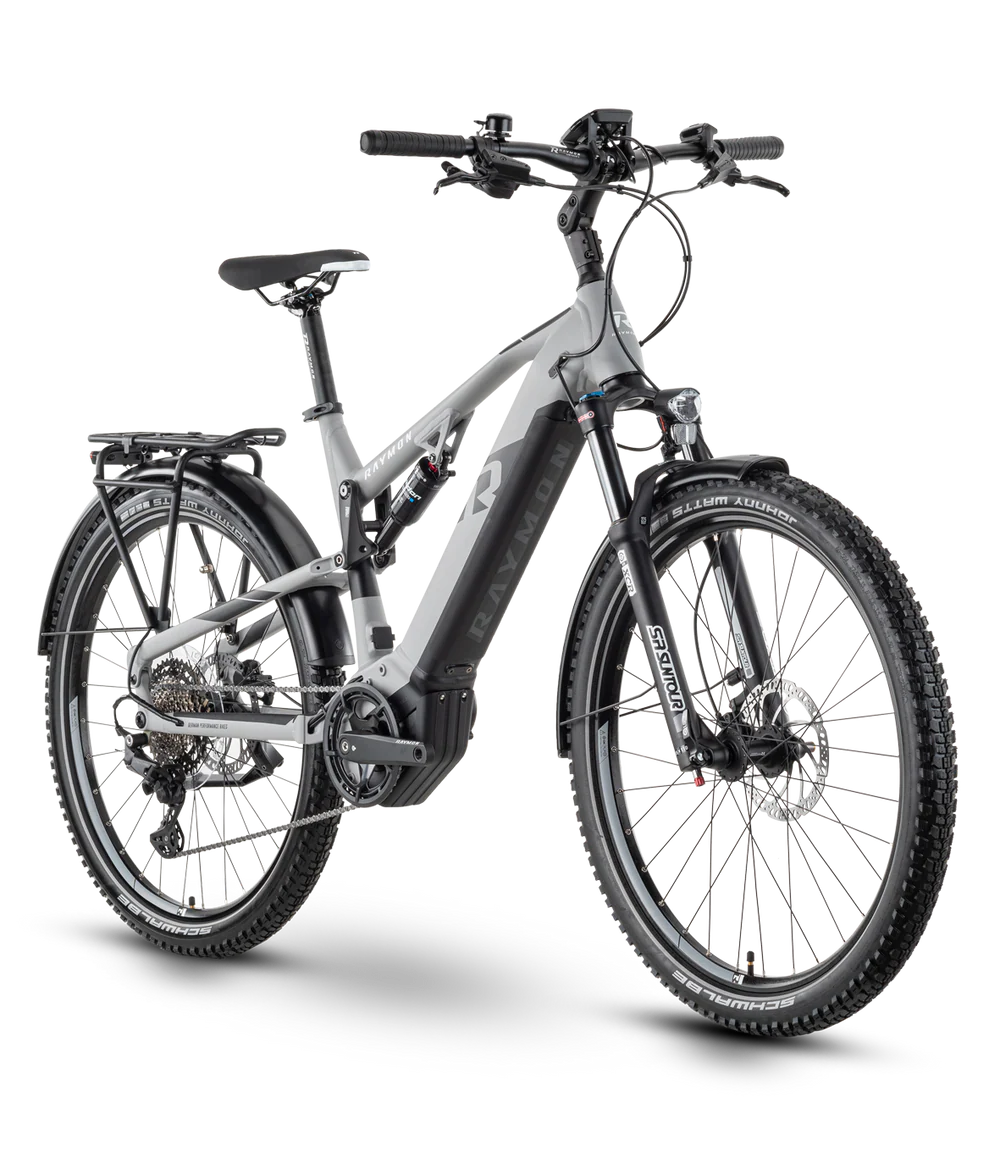

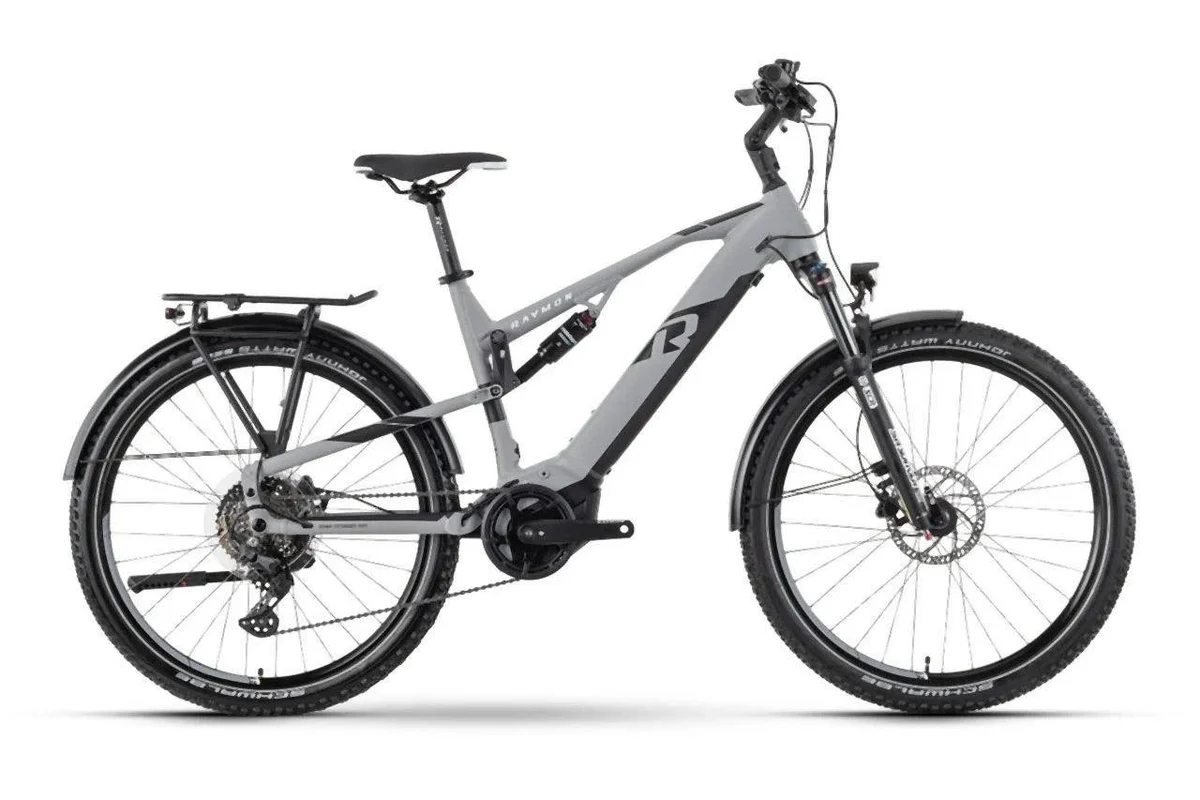

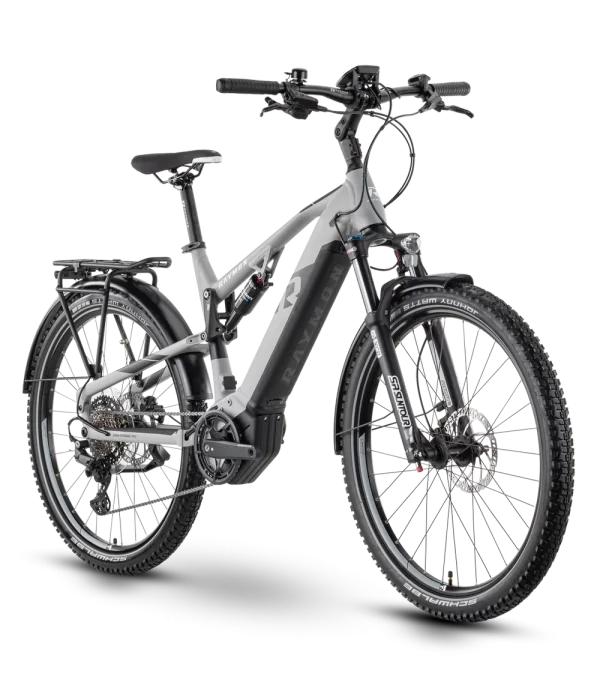

Raymon CrossRay FS E 5.0 Full-suspension Electric Trekking Bike

Add to wishlist
SKU: N/A
Add to wishlist

$500.00

Compare

Description

Features:

Frame Aluminum: 27.5″, alloy 6061, Integrated battery
Fork SR SUNTOUR XCR34 Boost LOR, Air, 120 mm, tapered
Shock SR SUNTOUR Raidon R, Air, 190×51 mm
Motor Yamaha PW-ST, 250 W, 70 Nm
Battery Simplo, 630 Wh, 36 V
Display Yamaha Display C, LCD-Display, Micro-USB
Shifter Tektro SL-M350R, 9 speed
Rear derailleur Tektro RD-T350, 9 speed
Cassette Tektro CS-M350, 11-46T
Chain KMC e9S
Crankset R Raymon, 38T
Brakes Tektro HD-T280, 2 pistons, hydraulic disc brake
Wheels Mach 1 TRUCKY 30, eyeletted, tubeless ready
Tires Schwalbe Johnny Watts, Performance, Reflex, 60-584, 27.5×2.35”
Handlebars R Raymon Riser 31.8 mm, 700 mm, Sweep: 9 °, Rise: 12 mm
Handles R Raymon Ergo, Screw-on grips
Stem R Raymon 31.8, Ahead, adjustable
Pedals R Raymon, aluminum
Saddle R Raymon Ergo
Seatpost R Raymon, 31.6 mm, 350 mm, Patent
Accessories Lights :Herrmans MR4, 120 lm, Position light – AXA Blueline E, Position light / Mudguard : Eurofender Tempo / Luggage rack : R Raymon Tour, MIK, 25 kg belastbar / Ursus MOOI, stand KSA40, adjustable
Weight 27.5 kg
Colors grey / black / white matt

Geometries :

Frame size (cm) S M L
Seat tube (mm) 450 500 550
Top Tube (mm) 605 610 615
Steering angle (°) 69 70 70
Seat tube angle (°) 73 73 73
Base length (mm) 460 460 460
Steering sleeve (mm) 140 140 150
Wheelbase (mm) 1134 1128 1133
Stack (mm) 621 626 635
Reach (mm) 415 419 421
